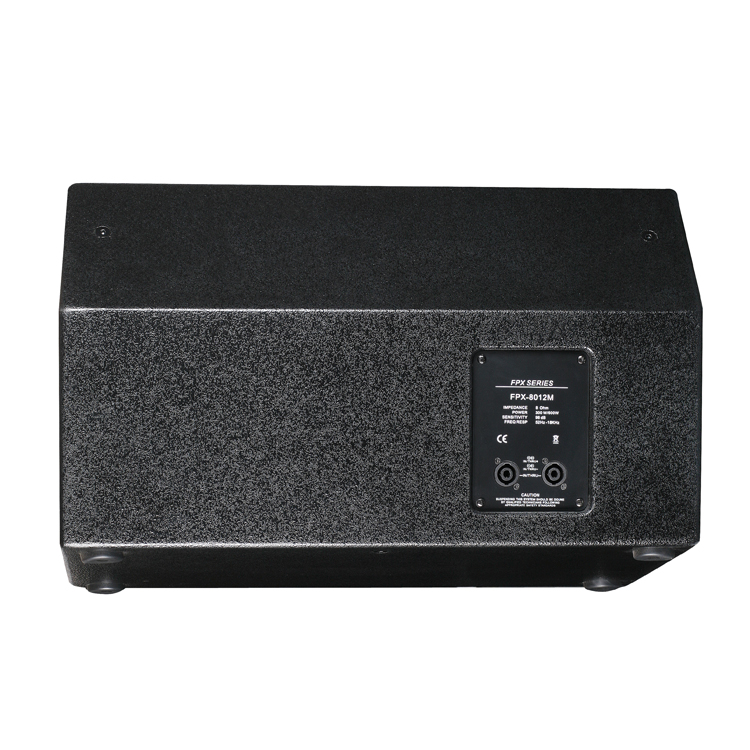

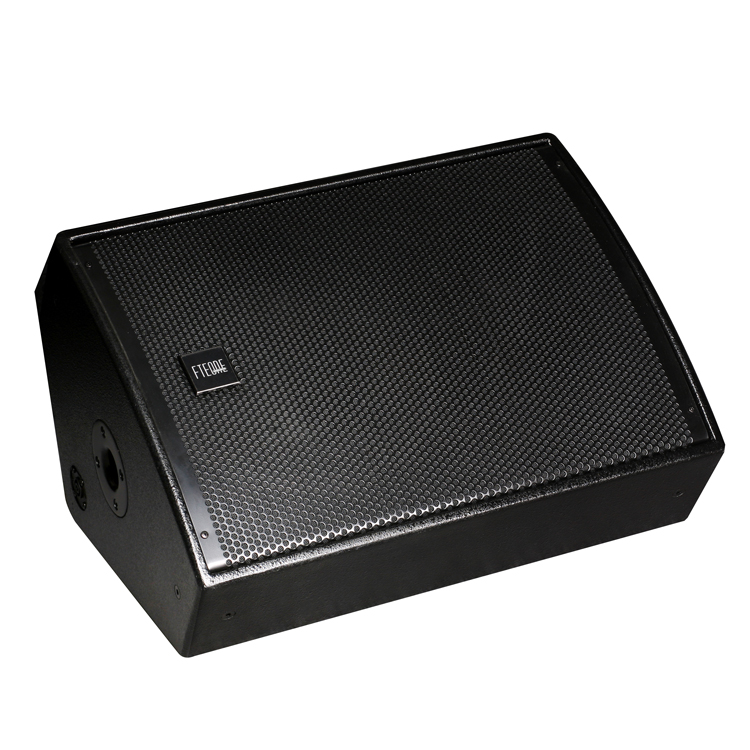

FPX-8012M/FPX-8015M
| • 型号Model: | FPX-8012M | FPX-8015M |
| • 低音单元LF Driver: | 1×12″ | 1×15″ |
| • 高音HF Driver : | 1×1.75″ | 1×3″ |
| • 输入阻抗 Nom Impedance: | 8 ohm | 8 ohm |
| • 连续功率RMS Power: | 300W | 350W |
| • 峰值功率Program Power: | 600W | 600W |
| • 频响 Frequency: | 52Hz-18kHz | 50Hz-18kHz |
| • 灵敏度(1w/m)sensitivity: | 98 dB | 100 dB |
| • 最大声压SPL rating(Peak): | 120 dB | 120 dB |
| • 扩声角度(H*V)dispersion: | 90°H×50°V | 90°H×40°V |
| • 吊挂Hanging: | M8预装件 | M10预装件 |
| • 底坐 Bottom sit: | 35mm铁底坐 | 35mm铁底坐 |
| • 连接器 Connector: | 2×speakon NL4MP | 2×speakon NL4MP |
| • 净重 Weight: | 18kg | 26kg |
| • 产品规格 (H*W*D)Dimension: | 603×475×360mm | 720×540×425mm |
